Road milling parts.

Picks, holders, drums and the wear parts that keep milling machines working. Add catalogue parts to one request, or send us a part number and photos for anything not listed.

ROAD MILLING PARTS CATALOGUE

98 parts across 9 component groups.

Add the parts you need to one request — from either paving catalogue. Part numbers are identification references; our parts team confirms fitment, availability and pricing before anything ships.

Download the cataloguePDF · 38 pages · 1.7 MB

98 partsAll component groups

Milling picks

Carbide picks for asphalt, concrete and soil.

Asphalt milling pick

A-4K/20

Part number: 2642519
Cross-reference: W4-G/20X²
Tip shape: Cap-shaped
Tip base diameter: 16 mm
Shank diameter: 20 mm
Pack quantity: 50 pieces
Pack weight: 13.4 kg
Carbide per pick: 20 g

Asphalt milling pick

A-5/20

Part number: 2642521
Cross-reference: W5/20X²
Tip shape: Cap-shaped
Tip base diameter: 18 mm
Shank diameter: 20 mm
Pack quantity: 50 pieces
Pack weight: 15.8 kg
Carbide per pick: 24 g

Asphalt milling pick

A-6/20

Part number: 2642523
Cross-reference: W6/20X²
Tip shape: Cap-shaped
Tip base diameter: 19 mm
Shank diameter: 20 mm
Pack quantity: 50 pieces
Pack weight: 15.8 kg
Carbide per pick: 30 g

Asphalt milling pick

A-6K/20

Part number: 2642522
Cross-reference: W6-G/20X²
Tip shape: Cap-shaped
Tip base diameter: 19 mm
Shank diameter: 20 mm
Pack quantity: 50 pieces
Pack weight: 14.8 kg
Carbide per pick: 30 g

Asphalt milling pick

A-7/20

Part number: 2642532
Cross-reference: W7/20X²
Tip shape: Cap-shaped
Tip base diameter: 20 mm
Shank diameter: 20 mm
Pack quantity: 50 pieces
Pack weight: 16.3 kg
Carbide per pick: 40 g

Asphalt milling pick

A-7K/20

Part number: 2642530
Cross-reference: W7-G/20X²
Tip shape: Cap-shaped
Tip base diameter: 20 mm
Shank diameter: 20 mm
Pack quantity: 50 pieces
Pack weight: 15.5 kg
Carbide per pick: 40 g

Asphalt milling pick

A-8/20

Part number: 1758415
Cross-reference: RC4-01
Tip shape: Cap-shaped
Tip base diameter: 20 mm
Shank diameter: 20 mm
Pack quantity: 40 pieces
Pack weight: 15.5 kg
Carbide per pick: 42 g

Concrete milling pick

A-C-13/20

Part number: 2642517
Cross-reference: W1-13-G/20X²
Tip shape: Cylindrical
Tip base diameter: 13 mm
Shank diameter: 20 mm
Pack quantity: 50 pieces
Pack weight: 15.5 kg
Carbide per pick: 40 g

Soil mixing pick

A-C1/22

Part number: 2493524
Cross-reference: W6/22Z²
Tip shape: Cap-shaped
Tip base diameter: 20 mm
Shank diameter: 22 mm
Pack quantity: 40 pieces
Pack weight: 16.8 kg
Carbide per pick: 40 g

Concrete milling pick

A-C3/22

Part number: 2493532
Cross-reference: W1-13/22Z
Tip shape: Cylindrical
Tip base diameter: 13 mm
Shank diameter: 22 mm
Pack quantity: 40 pieces
Pack weight: 16.8 kg
Carbide per pick: 40 g

GET THE RIGHT PART Have your machine model, serial number and part reference ready. A clear photo helps our parts team confirm the required component. sales@fullyequippedmachinery.com

Tool holders & bases

Tool holders, base holders, seals and retaining bolts.

Tool holder

A-7002

Part number: 187002
Weight: 1.88 kg
Fitment: HT11/20
Pack quantity: 10 pieces
Includes: Plug and seal

Tool holder

A-9001

Part number: 199001
Weight: 1.86 kg
Fitment: HT11/22
Pack quantity: 10 pieces
Includes: Plug and seal

Tool holder

A-2808

Part number: 2682808
Weight: 2.33 kg
Fitment: HT22
Pack quantity: 8 pieces
Includes: Plug and seal

Tool holder

A-6780

Part number: 36780
Weight: 0.7 kg
Fitment: HT1
Pack quantity: 10 pieces

Tool holder

A-9765

Part number: 49765
Weight: 1.7 kg
Fitment: HT2
Pack quantity: 10 pieces

Tool holder

A-5243

Part number: 5243
Weight: 1.7 kg
Fitment: HT3
Pack quantity: 10 pieces

Tool holder

A-2285

Part number: 1012285
Weight: 0.787 kg
Fitment: C10AMC
Pack quantity: 25 pieces

Tool holder

A-2289

Part number: 1012289
Weight: 0.526 kg
Fitment: C10HD
Pack quantity: 40 pieces

Tool holder

A-2278

Part number: 1012278
Weight: 0.372 kg
Fitment: C10
Pack quantity: 40 pieces

Weld-on tool holder

A-9902

Part number: 69902
Weight: 1.64 kg
Design: Three bores
Carton quantity: 15 pieces

Tool holder

A-5505

Part number: 3545505
Weight: 0.977 kg
Fitment: KPF303

Threaded tool holder

TOOL HOLDER

Part number: Confirm with parts team

Contact our parts team to confirm fitment and specifications.

Tool holder

KT100

Part number: Confirm with parts team
Weight: 0.92 kg
Pack quantity: 10 pieces

Tool holder

A-4559

Part number: 241-4559
Weight: 1.04 kg
Pack quantity: 10 pieces

Tool holder

KT300

Part number: Confirm with parts team
Pack quantity: 10 pieces

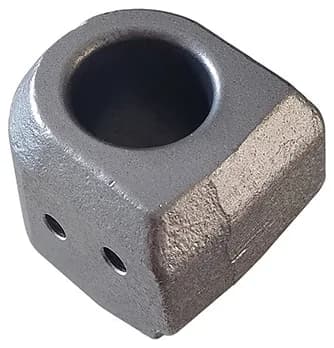

Tool holder

A-7082

Part number: 263-7082
Weight: 1.62 kg

Tool holder

A-9941

Part number: 1519941
Weight: 1.27 kg

Tool holder

A-1085

Part number: 88301085
Weight: 1.4 kg

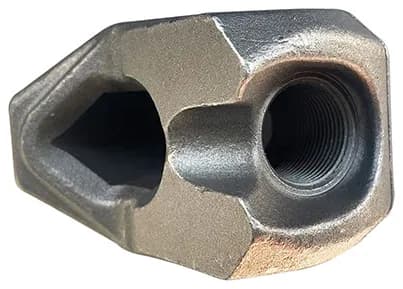

Base holder

A-8502

Part number: 158502
Weight: 4.84 kg
Fitment: HT11

Base holder

A-8014

Part number: 2198014
Weight: 4.8 kg
Fitment: HT22

Base holder

A-9997

Part number: 79997
Weight: 5 kg
Fitment: HT3

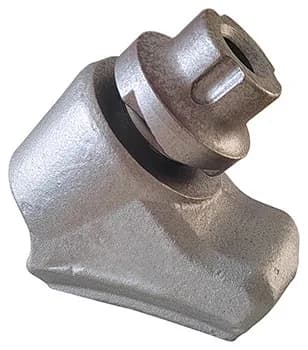

Base holder

A-3505

Part number: 1873505
Weight: 3.1 kg
Fitment: KPF301 base

Base holder

A-9141

Part number: 169-141
Weight: 4.8 kg
Fitment: QC110HD

Base seal and plug

A-8509

Part number: 158509 / 2197999
Weight: 5.6 g

Base seal and plug

A-7988

Part number: 2197988 / 2197989
Weight: 17 g

Retaining bolt

A-8501

Part number: 158501
Weight: 180 g

Milling drums

Drum assemblies for HT11 / HT22 tool holders.

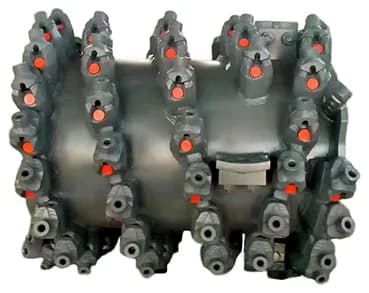

Milling drum

A-8577

Part number: 2308577
Weight: 1.1 tons
Tool holders: HT11 / HT22

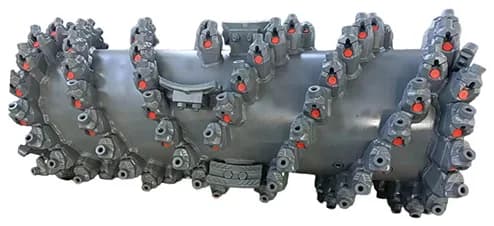

Milling drum

A-4564

Part number: 2314564
Weight: 1.9 tons
Tool holders: HT11 / HT22

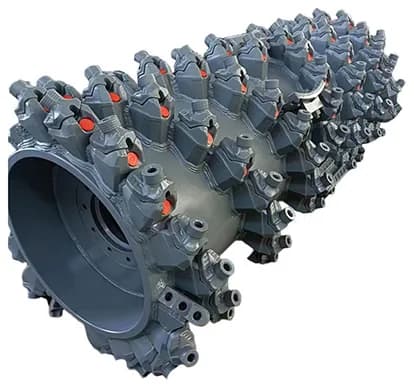

Milling drum

A-7321

Part number: 2307321
Weight: 1.9 tons
Tool holders: HT11 / HT22

Drum housing & wear parts

Carbide scrapers, protective skids and ejectors.

Carbide scraper

A-6731

Part number: 56731
Weight: 1.57 kg
Profile: A248
Packaging: 5-ply corrugated carton

Carbide scraper

A-4638

Part number: 44638
Weight: 1.53 kg
Profile: B248L
Packaging: 5-ply corrugated carton

Carbide scraper

A-4639

Part number: 44639
Weight: 1.53 kg
Profile: B248R
Packaging: 5-ply corrugated carton

Carbide scraper

A-6456

Part number: 146456
Weight: 1.57 kg
Profile: B248
Packaging: 5-ply corrugated carton

Carbide scraper

A-6457

Part number: 146457
Weight: 1.53 kg
Profile: B248L
Packaging: 5-ply corrugated carton

Carbide scraper

SCRAPER A248R

Part number: 146458
Weight: 1.53 kg
Profile: B248R
Packaging: 5-ply corrugated carton

Carbide scraper

A-6731

Part number: 56731 / 146459
Weight: 0.6 kg
Profile: B100
Packaging: 5-ply corrugated carton

Carbide scraper

A-8838

Part number: 8838
Weight: 0.185 kg
Profile: FB50
Packaging: 5-ply corrugated carton

2K protective skid

A-5630

Part number: 155630
Weight: 7.5 kg
Packaging: 5-ply corrugated carton

2K protective skid

A-6074

Part number: 2106074
Weight: 4.42 kg
Packaging: 5-ply corrugated carton

2K protective skid

A-1404

Part number: 2111404
Weight: 1.9 kg
Packaging: 5-ply corrugated carton

2K protective skid

A-9177

Part number: 2069177
Weight: 1.42 kg
Packaging: 5-ply corrugated carton

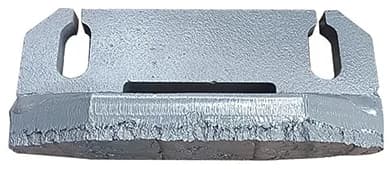

2K protective skid

A-9390

Part number: 2129390
Weight: 1.42 kg
Packaging: 5-ply corrugated carton

Ejector

A-5520

Part number: 45520
Weight: 4.5 kg
Packaging: 5-ply corrugated carton

Ejector

A-4097

Part number: 44097
Weight: 6.5 kg
Packaging: 5-ply corrugated carton

Ejector

A-0635

Part number: 2140635
Weight: 4.48 kg
Packaging: 5-ply corrugated carton

Ejector

A-0636

Part number: 2140636
Packaging: 5-ply corrugated carton

Conveyor components

Belts, rollers, bearings, housings and seals.

Conveyor belt

A-7482

Part number: 57482
Weight: 210 kg
Dimensions: 800 x 16,300 mm
Volume: 0.98 m³

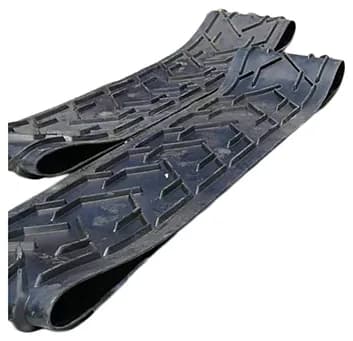

Conveyor belt

A-5890

Part number: 25890
Weight: 105 kg
Dimensions: 800 x 4,740 mm
Volume: 0.49 m³

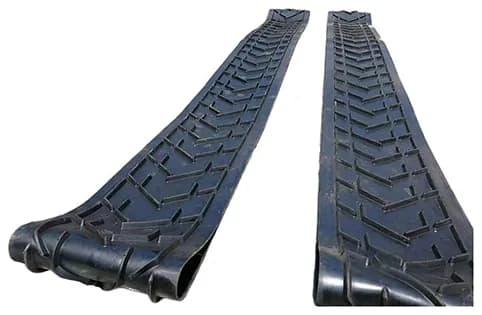

Conveyor belt

A-8316

Part number: 138316
Weight: 210 kg
Dimensions: 1,000 x 16,300 mm
Volume: 0.98 m³

Guide roller

A-4954

Part number: 54954
Weight: 1.34 kg
Warranty: 6 months

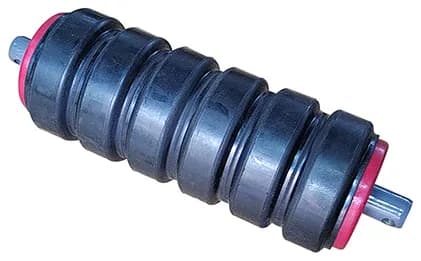

Idler roller

A-1189

Part number: 2091189
Weight: 4.64 kg
Warranty: 6 months

Return roller

A-1190

Part number: 2091190
Weight: 12.36 kg
Warranty: 6 months

Return roller

A-0059

Part number: 90059

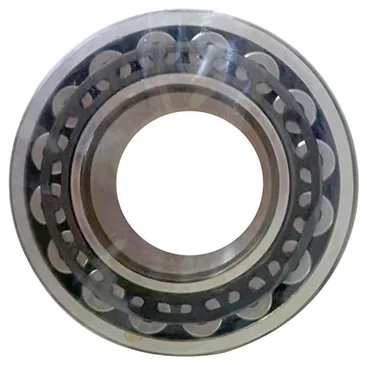

Bearing

A-3424

Part number: 83424

Cover

A-0868

Part number: 110868

Housing

A-0873

Part number: 110873
Weight: 5.6 kg

Spacer

A-4467

Part number: 144467

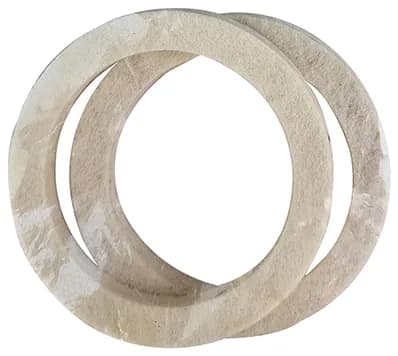

Seal

A-5072

Part number: 145072

Track undercarriage

Track pads, chains, sprockets, idlers and rollers.

Bolt-on track pad

A-0002

Part number: 2650002
Weight: 2 kg
Includes: Screws and nuts

Track pad

A-1111

Part number: 2411111
Weight: 2 kg
Includes: Screws and nuts

Base plate

A-3489

Part number: 2063489
Weight: 5.36 kg

Track pad

A-0740

Part number: 150740
Weight: 5.44 kg
Hardware: Screws and nuts excluded

Track pad

A-P0740

Part number: 150740
Weight: 5.95 kg
Hardware: Screws and nuts excluded

Track pad

A-0821

Part number: 150821
Weight: 5.95 kg
Hardware: Screws and nuts excluded

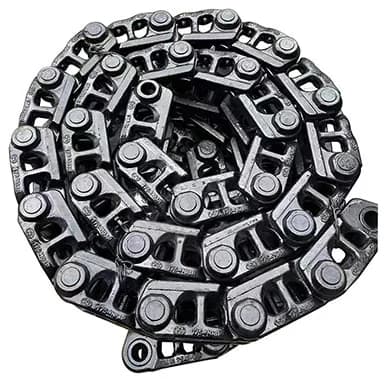

Track chain

A-1236

Part number: 121236

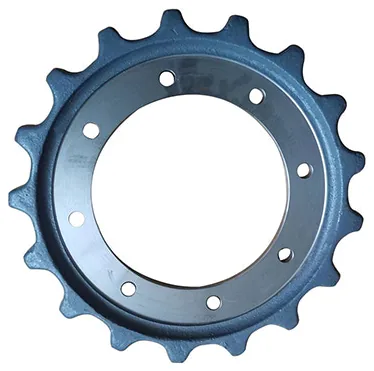

Drive sprocket

A-3365

Part number: 2553365
Weight: 19 kg

Idler assembly

A-1232

Part number: 121232
Warranty: 6 months

Driven wheel

A-9776

Part number: 2139776
Weight: 60 kg

Track roller

A-3999

Part number: 193999
Weight: 12.3 kg

Wheel assemblies

Complete replacement wheels.

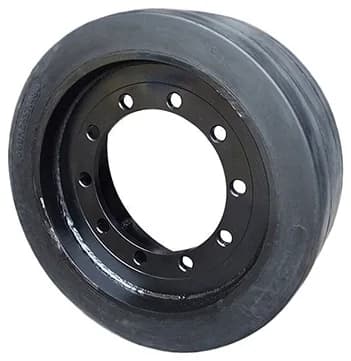

Complete wheel

A-9233

Part number: 2149233
Weight: 100 kg

Complete wheel

A-9234

Part number: 2149234
Weight: 100 kg

Complete wheel

A-6673

Part number: 2136673
Weight: 100 kg

Electrical & auxiliary parts

Lights, sensors, controls, cables and a high-pressure pump.

LED work light

A-4723

Part number: 2214723
Weight: 1 kg
Packaging: 5-ply corrugated carton

Rotating warning beacon

A-6319

Part number: 2336319
Weight: 1 kg
Packaging: 5-ply corrugated carton

Wire-rope sensor

A-7341

Part number: 2137341
Weight: 2 kg
Warranty: 1 year
Packaging: 5-ply corrugated carton

Depth sensor

A-5279

Part number: 2075279
Weight: 1.5 kg
Warranty: 1 year
Packaging: 5-ply corrugated carton

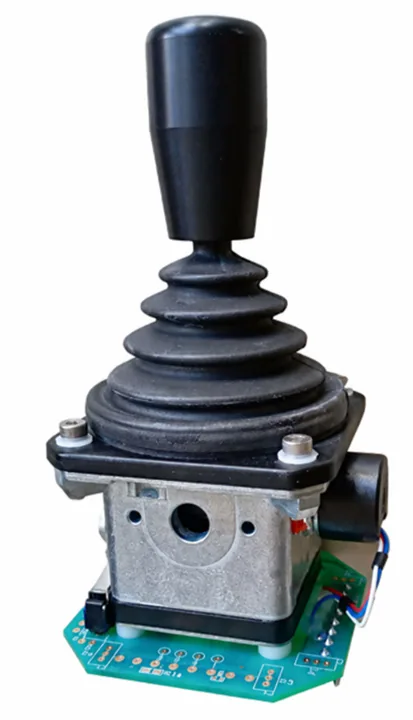

Control joystick

A-3613

Part number: 113613
Weight: 2 kg
Warranty: 3 months
Packaging: 5-ply corrugated carton

Coiled depth-sensor cable

A-2539

Part number: 192539
Warranty: 3 months
Packaging: 5-ply corrugated carton

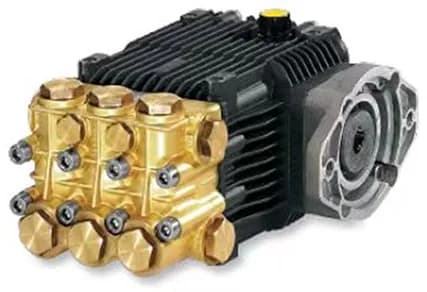

High-pressure pump

A-4660

Part number: 2174660

GET THE RIGHT PART Have your machine model, serial number and part reference ready. A clear photo helps our parts team confirm the required component. sales@fullyequippedmachinery.com

Service & replacement parts

Spray nozzles, belts, removal tools and hardware.

Spray nozzle

A-1765

Part number: 71765
Warranty: 6 months

Spray nozzle

A-6482

Part number: 2116482
Warranty: 6 months

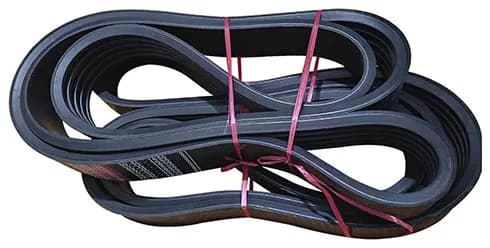

Drive belt

A-3850

Part number: 113850
Warranty: 6 months

Pneumatic pick removal tool

A-4252

Part number: 84252
Warranty: 6 months

Pick ejector tool

A-5275

Part number: 45275
Weight: 0.74 kg
Warranty: 6 months

Pick extractor

A-8812

Part number: 28812
Weight: 0.74 kg
Warranty: 6 months

Internal retaining ring

A-5402

Part number: 45402

Screw

A-8982

Part number: 148982

Water pressure regulator

A-8593

Part number: 2438593

WHAT TO SEND

Three details get you a faster answer.

01Machine modelProvide the make, model and machine plate number when known.

02Part numberAdd catalogue parts, or enter the number on the part.

03Part photosAdd clear photos from more than one angle when possible.

Your contact details

Tell us where to send the quote and how our parts team should reach you.

First nameLast name

CompanyPreferred contact

Email addressPhone number

Email is required when Email is selected. A phone number is required for Phone or Text message.City, state / province and country

Machine and part details

We use these details to identify the correct part before quoting.

Machine make

Machine yearMachine modelPlate number

Catalogue parts in this request

None yet — use + Add to request on any catalogue part, or describe what you need below.

Part you needNot in the catalogue, a custom order, or not sure of the number — describe it here and add photos.

Part numberQuantity

Part description

Add identification photos

Photos are optional, but clear, complete images help us return an accurate quote without delays.

＋ Part photo(s) (optional)The part, its number and the machine plate — from more than one angle

Your contact, machine and photo details are saved with this request so the FEM team can prepare and follow up on an accurate quote.
